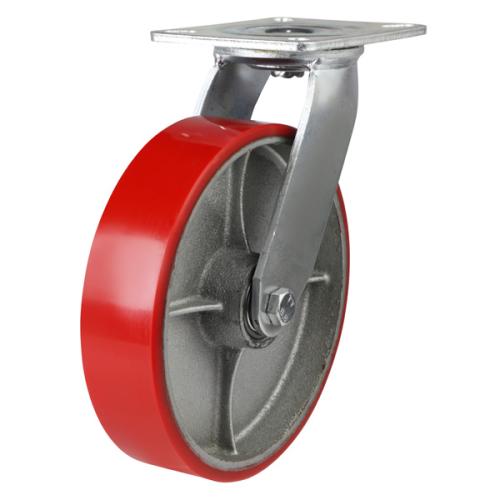

Heavy Duty 200mm Polyurethane on Nylon Swivel Castor - 450kg Load
Code: 200AGH4IRPUBJ
Technical Information
| Load Capacity (kg) | 450kg |
| Load Capacity (kg) of 4 Castors | 1350kg |
| Overall Height | 240mm |
| Wheel Diameter | 200mm |
| Tread Width | 50mm |
| Castor Type | Swivel |
| Fitting Method | Plate |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Hole Size | 11mm |
| Offset | 60mm |
| Bearing Type | Ball |
| Bracket Material | Fabricated |
| Wheel Material | Polyurethane on Cast Iron |
| Wheel Colour | Red |
The Heavy Duty 200mm Polyurethane on Cast Iron Swivel Castor is engineered for superior strength and reliability under 450kg loads. Constructed with a fabricated steel frame and precision Ball Bearing technology, it provides smooth, stable motion. The polyurethane tread reduces noise and protects flooring, while the cast iron core ensures rigidity and long service life. Ideal for manufacturing equipment, material-handling systems, and transport trolleys in demanding environments, this plate-mounted castor is designed to meet the needs of heavy-duty applications.
