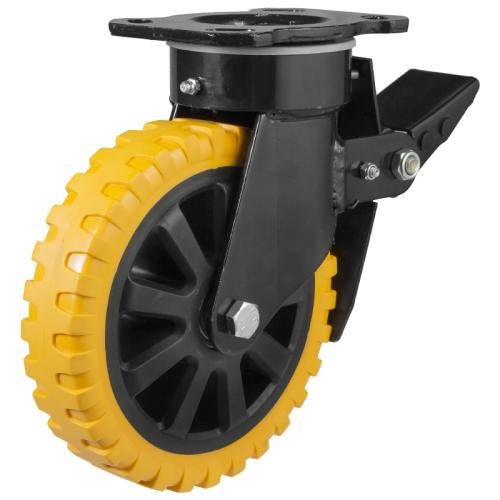

125mm Polyurethane Swivel Braked Castor [250kg max load]
Code: 125NGR4OPUBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 250kg |
Load Capacity Per 4-Set (kg) | 750kg |
Overall Height | 165mm |
Wheel Diameter | 125mm |
Tread Width | 50mm |
Castor Type | Swivel Braked |
Fitting Method | Plate |
Hole Size | 13mm |
Plate Size | 149mm x 110mm |
Hole Centres | 105mm x 80mm |
Bearing Type | Ball |
Offset | 45mm |
Bracket Material | Fabricated |
Wheel Material | Polyurethane on Nylon |
Wheel Colour | Yellow |
