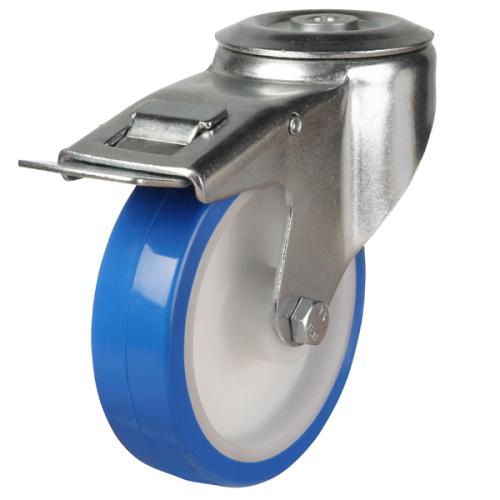

125mm Elastic Polyurethane Swivel Braked Castor [175kg max load]
Code: 125DRBH12EPNSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) |
175kg |
| Load Capacity Per 4-Set (kg) |
525kg |
| Overall Height |
152mm |
| Wheel Diameter |
125mm |
| Tread Width |
32mm |
| Castor Type |
Swivel Braked |
| Fitting Method |
M12 Bolt Hole |
| Bearing Type |
Plain |
| Offset |
47mm |
| Bracket Material |
Pressed Steel |
| Wheel Material |
Elastic Polyurethane on Nylon |
| Wheel Colour |
Blue |
