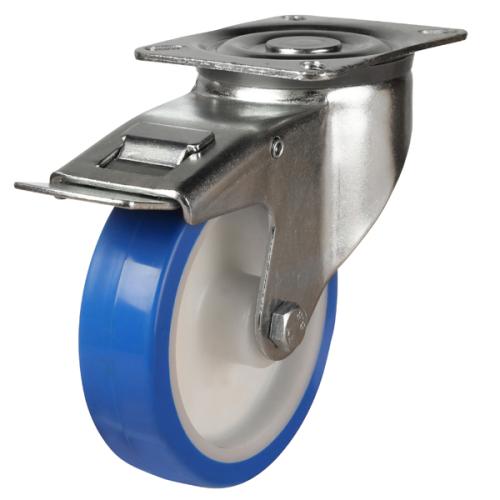

125mm Elastic Polyurethane Swivel Braked Castor [175kg max load]
Code: 125DR4EPNSWB
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 175kg |
Load Capacity Per 4-Set (kg) | 525kg |
Overall Height | 152mm |
Wheel Diameter | 125mm |
Tread Width | 32mm |
Castor Type | Swivel Braked |
Fitting Method | Plate |
Hole Size | 9mm |
Plate Size | 105mm x 85mm |
Hole Centres | 80mm x 60mm |
Bearing Type | Plain |
Offset | 47mm |
Bracket Material | Pressed Steel |
Wheel Material | Elastic Polyurethane on Nylon |
Wheel Colour | Blue |
