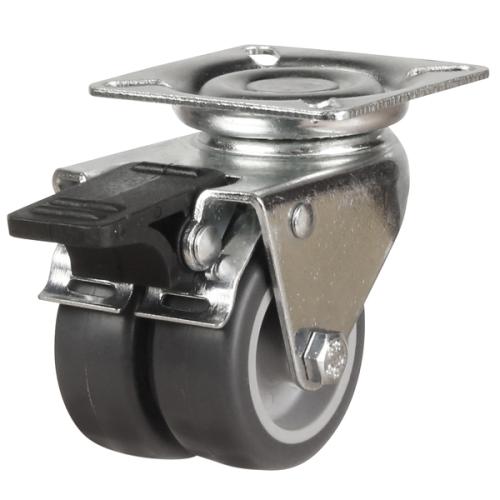

50mm Non-Marking Rubber Swivel Braked Castor [60kg max load]


Code: 50DR24TPRSWB


Technical Information

Load Capacity (kg) 60kg
Load Capacity Per 4-Set (kg) 180kg
Overall Height 72mm
Wheel Diameter 50mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 6.2mm
Plate Size 60mm x 60mm
Hole Centres 46mm x 46mm
Bearing Type Plain
Offset 26mm
Bracket Material Pressed Steel
Wheel Material Synthetic Non-Marking Rubber on Plastic
Wheel Colour Grey

Known as the 'piano castor' these small yet mighty twin wheel castors are used throughout the world on a variety of piano types, including a petite baby grand. Available in synthetic grey non-marking rubber or black nylon, these castors can be fitted via either a plate or bolt hole and have the option for a braked type. These castors are also suitable for low level apparatus which require a load capacity up to 180kg.
