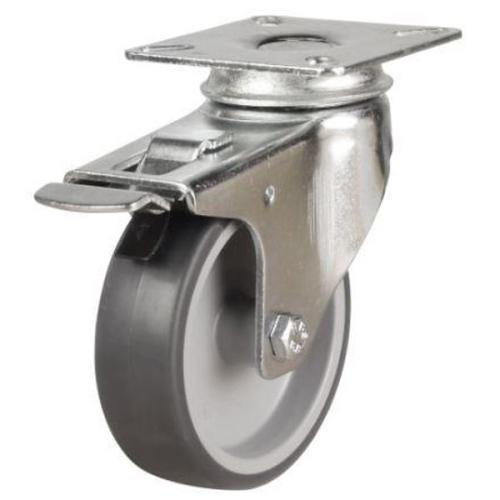

50mm Non-Marking Grey Rubber Swivel Braked Castor [40kg max load]


Code: 50DRL4TPRSWB


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 40kg
Load Capacity Per 4-Set (kg) 120kg
Overall Height 73mm
Tread Width 20mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 6.3mm
Plate Size 50mm x 50mm
Hole Centres 35mm x 35mm
Bearing Type Plain
Offset 25mm
Bracket Material Pressed Steel
Wheel Material Synthetic Non-Marking Rubber on Plastic
Wheel Diameter 50mm
Wheel Colour Grey

Our light duty rubber castor can be used for low-capacity applications such as small furniture, display cabinets and light equipment. The non-marking grey rubber ensures floors are protected when in use. Suitable for compact, wooden and resin floors this castor can be used indoors for providing ease of movement with minimal load-bearing requirements, up to 270kg per set.
