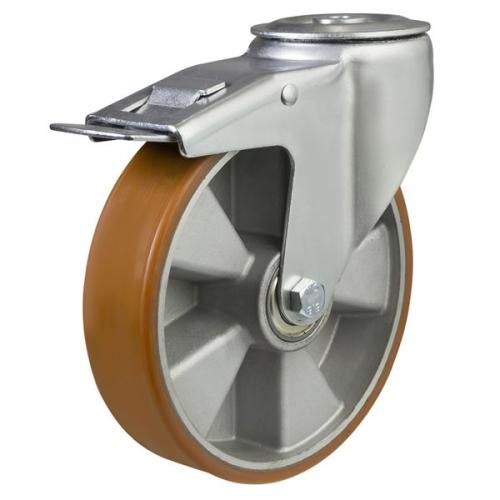

200mm Polyurethane Swivel Braked Castor [350kg max load]


Code: 200DRBH12PTABJSWB


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 350kg
Load Capacity Per 4-Set (kg) 1050kg
Overall Height 237mm
Wheel Diameter 200mm
Tread Width 50mm
Castor Type Swivel Braked
Fitting Method M12 Bolt Hole
Bearing Type Ball
Offset 68mm
Bracket Material Pressed Steel
Wheel Material Polyurethane on Aluminium
Wheel Colour Orange
