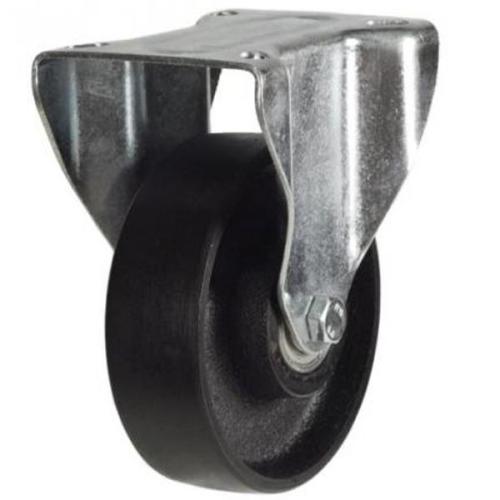

150mm Cast Iron Fixed Castor [350kg max load]

150mm Cast Iron Fixed Castor [350kg max load]

Code: 150DR8CIBJ

Wheel Diameter Options (Please select from below):

Technical Information

Type Industrial Castor
Load Capacity (kg) 350kg
Load Capacity Per 4-Set (kg) 1050kg
Overall Height 185mm
Wheel Diameter 150mm
Tread Width 45mm
Castor Type Fixed
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 105mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset
Bracket Material Pressed Steel
Wheel Material Cast Iron
Wheel Colour Black
