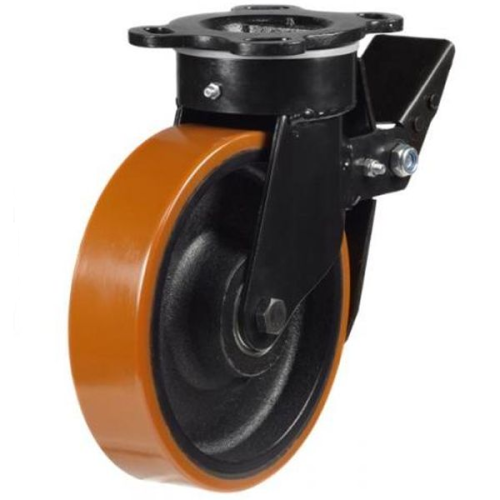

125mm Polyurethane on Cast Iron Swivel Braked Castor [550kg max load]


Code: 125NGR4PTBJSWB


Technical Information

Load Capacity (kg) 550kg
Load Capacity Per 4-Set (kg) 1650kg
Overall Height 177mm
Wheel Diameter 125mm
Tread Width 50mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 13mm
Plate Size 149mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 45mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
