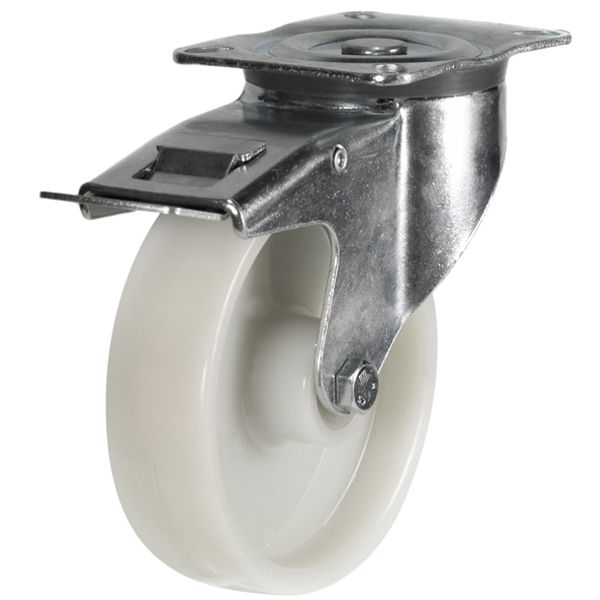

100mm Nylon Swivel Braked Castor [350kg max load] (Ball Bearing)
Code: 100DRH4NYBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 350kg |
| Load Capacity Per 4-Set (kg) | 1050kg |
| Overall Height | 128mm |
| Wheel Diameter | 100mm |
| Tread Width | 40mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 9mm |
| Plate Size | 105mm x 85mm |
| Hole Centres | 80mm x 60mm |
| Bearing Type | Ball |
| Offset | 39mm |
| Bracket Material | Pressed Steel |
| Wheel Material | Nylon |
| Wheel Colour | White |
