Wagon Brake
Code: wagon-brake
Technical Information
| Load Capacity (kg) | 360kg |
| Stroke/Lift | 41mm |
| Mounting Height Minimum | 140mm * |
| Mounting Height Maximum | 175mm * |
| Plate Size | 55mm x 55mm |
| Hole Size | 8mm |
| Colour | Black |
* Sizes Calculated to Centre of Lower Mounting Hole

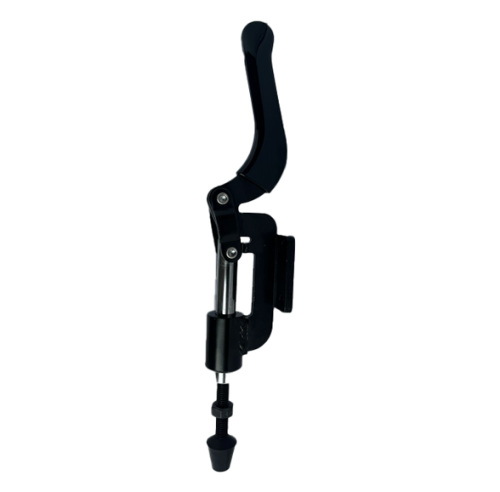

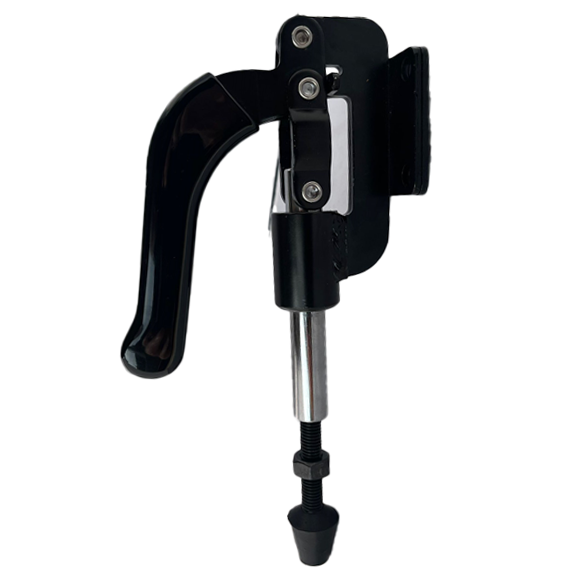

Our heavy duty wagon brake with an adjustable rubber foot will keep your platform or scenery rock-steady—with no floor drilling required. Mounted to the side of your platform or wagon, this brake’s adjustable rubber foot lifts the unit clear off its castors the moment you engage it. The result is instant, whisper-quiet holding power that won’t budge under dancers, performers, or shifting loads.
Best Practice: Fit at least two brakes per platform for absolute security.
This highly versatile unit can also be used with a castor fitted to provide an instant engage and release castor jack – please speak to one of our team members for details.
