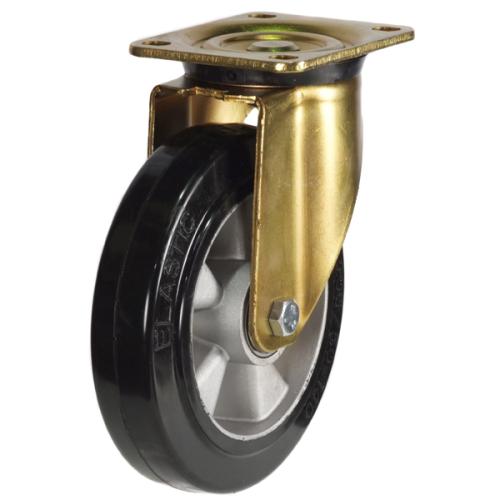

Heavy Duty 125mm Elastic Rubber on Aluminium Swivel Castor - 250kg Load
Code: 125GDH4EABJ
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 250kg |
| Load Capacity (kg) of 4 Castors | 750kg |
| Overall Height | 166mm |
| Wheel Diameter | 125mm |
| Tread Width | 50mm |
| Castor Type | Swivel |
| Fitting Method | Plate |
| Plate Size | 135mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Hole Size | 12mm |
| Offset | 55mm |
| Bearing Type | Ball |
| Bracket Material | Heavy Pressed Steel |
| Wheel Material | Elastic Rubber on Aluminium |
| Wheel Colour | Black |
The 125mm Swivel Castor with a plate features a robust design that supports up to 250kg. It combines a lightweight aluminium hub with an elastic rubber tread for effective vibration absorption. The heavy-pressed-steel housing ensures strength and durability, making it ideal for heavy-duty production lines and assembly carts. Equipped with Ball Bearing for smooth movement, this castor is perfect for demanding applications.
