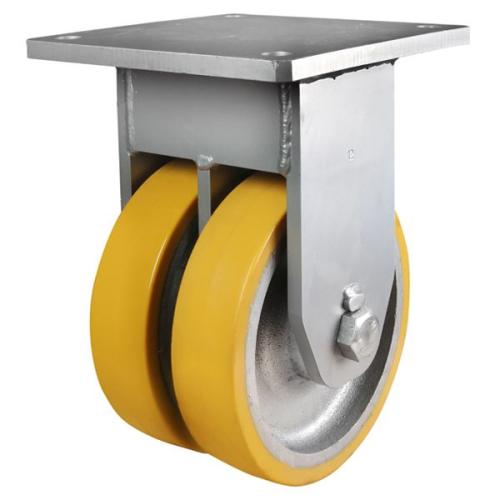

300mm Polyurethane on Cast Iron Fixed Castor [7000kg max load]

300mm Polyurethane on Cast Iron Fixed Castor [7000kg max load]

Code: 300DWDUH8PTTT

Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 7000kg
Load Capacity Per 4-Set (kg) 21000kg
Overall Height 439mm
Wheel Diameter 300mm
Tread Width 75mm / 75mm
Castor Type Fixed
Fitting Method Plate
Hole Size 25mm
Plate Size 320mm x 320mm
Hole Centres 254mm x 254mm
Bearing Type Ball
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Yellow
