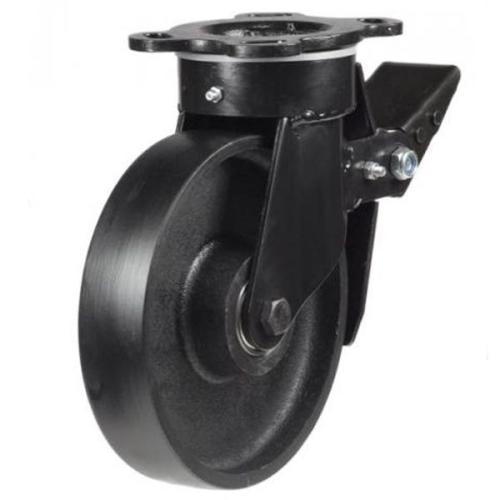

250mm Cast Iron Swivel Braked Castor [1300kg max load]
Code: 250NGR4CIBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 1300kg |
| Load Capacity Per 4-Set (kg) | 3900kg |
| Overall Height | 303mm |
| Wheel Diameter | 250mm |
| Tread Width | 54mm |
| Castor Type | Swivel Braked |
| Fitting Method | Plate |
| Hole Size | 13mm |
| Plate Size | 149mm x 110mm |
| Hole Centres | 105mm x 80mm |
| Bearing Type | Ball |
| Offset | 70mm |
| Bracket Material | Fabricated |
| Wheel Material | Cast Iron |
| Wheel Colour | Black |
