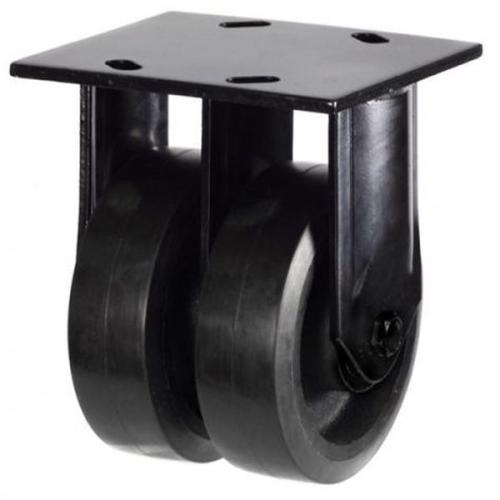

200mm Rubber on Cast Iron Fixed Castor [1200kg max load]
Code: 200DNGR8RTBJ
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 1200kg |
Load Capacity Per 4-Set (kg) | 3600kg |
Overall Height | 252mm |
Wheel Diameter | 200mm |
Tread Width | 50mm |
Castor Type | Fixed |
Fitting Method | Plate |
Hole Size | 13mm |
Plate Size | 149mm x 110mm |
Hole Centres | 105mm x 80mm |
Bearing Type | Ball |
Bracket Material | Fabricated |
Wheel Material | Elastic Rubber on Cast Iron |
Wheel Colour | Black |
