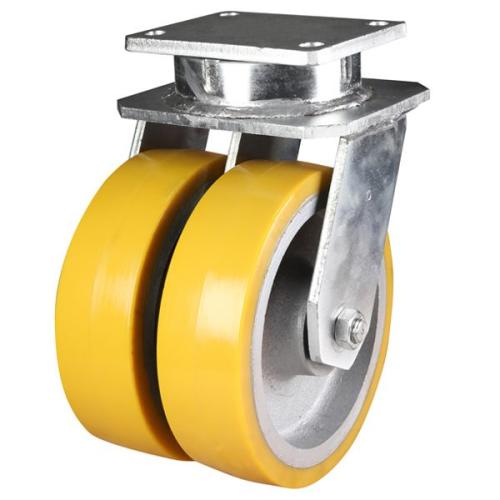

200mm Polyurethane on Cast Iron Swivel Castor [3600kg max load]
Code: 200DWDH4PTBJ
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) | 3600kg |
| Load Capacity Per 4-Set (kg) | 10800kg |
| Overall Height | 292mm |
| Wheel Diameter | 200mm |
| Castor Type | Swivel |
| Fitting Method | Plate |
| Tread Width | 75mm/75mm |
| Hole Size | 14mm x 19mm |
| Slotted Hole Centre | 152mm/156mm x 105mm/114mm |
| Plate Size | 191mm x 159mm |
| Bearing Type | Ball |
| Offset | 59mm |
| Bracket Material | Fabricated |
| Wheel Material | Polyurethane on Cast Iron |
| Wheel Colour | Yellow |
