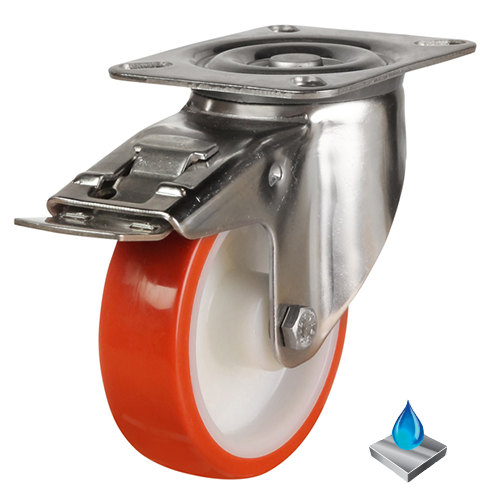

160mm Stainless Steel Polyurethane Swivel Braked Castor [320kg max load]
Code: SS160DR4PNOSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) |
320kg |
| Load Capacity Per 4-Set (kg) |
960kg |
| Overall Height |
195mm |
| Wheel Diameter |
160mm |
| Tread Width |
45mm |
| Castor Type |
Swivel Braked |
| Fitting Method |
Plate |
| Hole Size |
11mm |
| Plate Size |
135mm x 105mm |
| Hole Centres |
105mm x 80mm |
| Bearing Type |
Plain |
| Offset |
65mm |
| Bracket Material |
Stainless Steel |
| Wheel Material |
Polyurethane on Nylon |
| Wheel Colour |
Red |
