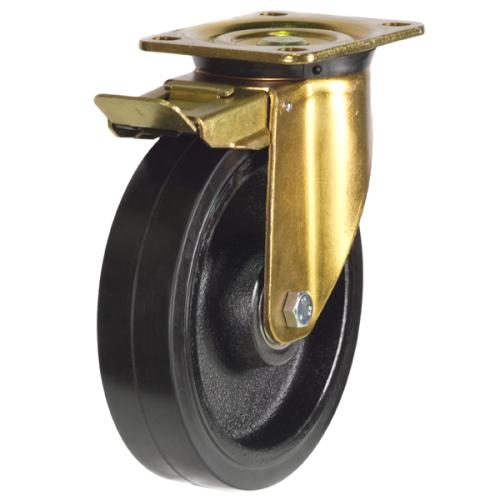

150mm Rubber on Cast Iron Swivel Braked Castor [400kg max load]


Code: 150GDH4RTBJSWB


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 400kg
Load Capacity Per 4-Set (kg) 1200kg
Overall Height 194mm
Wheel Diameter 150mm
Tread Width 50mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 12mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 55mm
Bracket Material Pressed Steel
Wheel Material Elastic Rubber on Cast Iron
Wheel Colour Black
