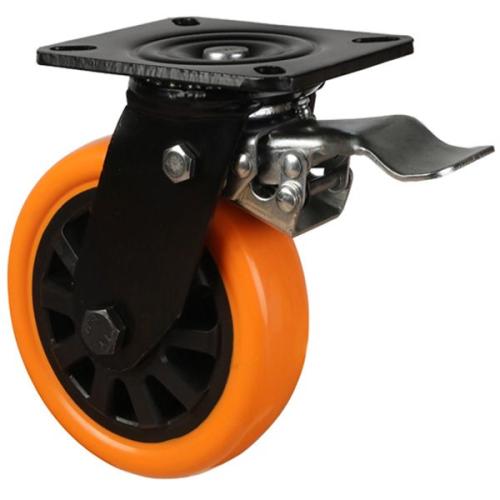

150mm Polyurethane Swivel Braked Castor [500kg max load]
Code: 150LMHB4PXBJSWB
Wheel Diameter Options (Please select from below):
Technical Information
Load Capacity (kg) | 500kg |
Load Capacity Per 4-Set (kg) | 1500kg |
Overall Height | 190mm |
Wheel Diameter | 150mm |
Tread Width | 50mm |
Castor Type | Swivel Braked |
Fitting Method | Plate |
Hole Size | 11mm |
Plate Size | 135mm x 110mm |
Hole Centres | 105mm x 80mm |
Bearing Type | Ball |
Offset | 45mm |
Bracket Material | Fabricated |
Wheel Material | Polyurethane on Nylon |
Wheel Colour | Orange |
