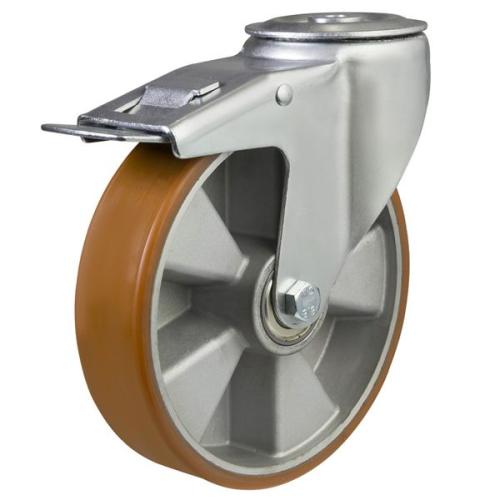

150mm Polyurethane Swivel Braked Castor [350kg max load]
Code: 150DRBH12PTABJSWB
Wheel Diameter Options (Please select from below):
Technical Information
| Load Capacity (kg) |
350kg |
| Load Capacity Per 4-Set (kg) |
1050kg |
| Overall Height |
185mm |
| Wheel Diameter |
150mm |
| Tread Width |
50mm |
| Fitting Method |
M12 Bolt Hole |
| Bearing Type |
Ball |
| Offset |
65mm |
| Bracket Material |
Pressed Steel |
| Wheel Material |
Polyurethane on Aluminium |
| Wheel Colour |
Orange |
![150mm Polyurethane Swivel Braked Castor [350kg max load]](/thumbnail/500x500/userfiles/images/sys/products/150mm_Polyurethane_On_Aluminium_Centre_Braked_Castors_30896jpeg.jpg)
