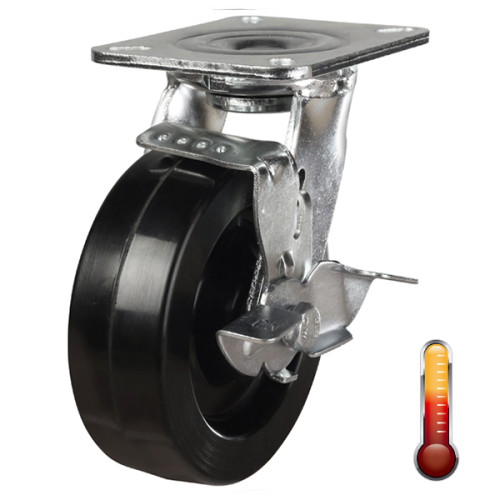

150mm Phenolic Swivel Braked Castor [400kg max load]


Code: 150LMH4WANBK220


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 400kg
Load Capacity Per 4-Set (kg) 1200kg
Overall Height 190mm
Wheel Diameter 150mm
Tread Width 50mm
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Roller
Offset 45mm
Bracket Material Fabricated
Wheel Material Phenolic
Temperature + 220°C
Wheel Colour Black
