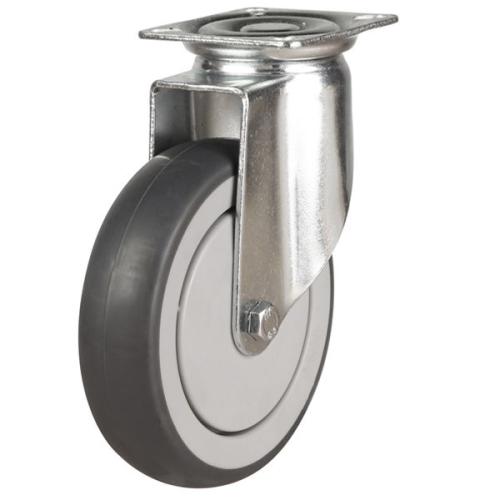

150mm Non-Marking Rubber Swivel Castor [130kg max load]


Code: 150LWA4TPRBJG


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 130kg
Load Capacity Per 4-Set (kg) 390kg
Overall Height 184.5mm
Wheel Diameter 150mm
Tread Width 32mm
Fitting Method Plate
Hole Size 8.5mm
Plate Size 67mm x 77mm
Hole Centres 51.5mm x 61.5mm
Bearing Type Ball
Offset 45mm
Bracket Material Pressed Steel
Wheel Material Synthetic Non-Marking Rubber on Plastic
Wheel Colour Grey

The capped version of the LWATPR series with a ball bearing option can be used for medium-capacity applications up to a load capacity of 390kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris entering the bearing, ensuring smooth maneuverability whilst in use.
