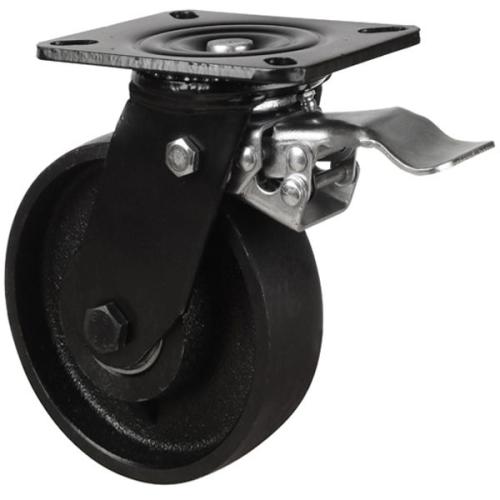

150mm Cast Iron Swivel Braked Castor [500kg max load]


Code: 150LMHB4CIBJSWB


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 500kg
Load Capacity Per 4-Set (kg) 1500kg
Overall Height 190mm
Wheel Diameter 150mm
Tread Width 45mm
Castor Type Swivel Braked
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 45mm
Bracket Material Fabricated
Wheel Material Cast Iron
Wheel Colour Black
