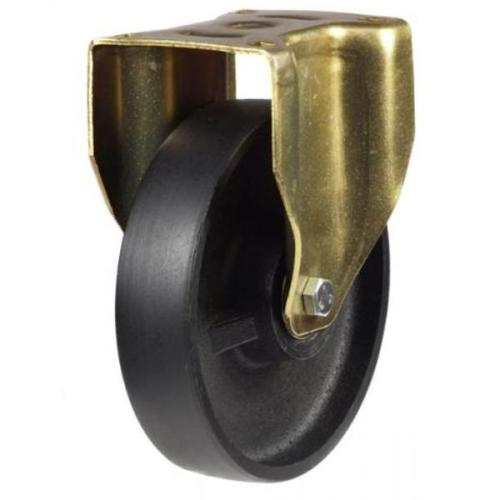

150mm Cast Iron Fixed Castor [800kg max load]


Code: 150GDH8CIBJ


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 800kg
Load Capacity Per 4-Set (kg) 2400kg
Overall Height 194mm
Wheel Diameter 150mm
Tread Width 45mm
Castor Type Fixed
Fitting Method Plate
Hole Size 12mm
Type Industrial Castor
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Bracket Material Pressed Steel
Wheel Material Cast Iron
Wheel Colour Black
