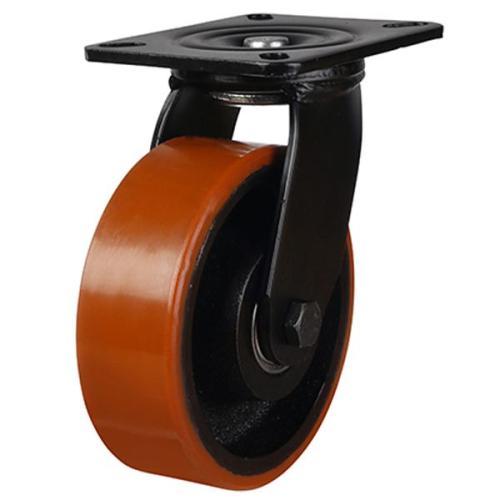

100mm Polyurethane on Cast Iron Swivel Castor [450kg max load]


Code: 100LMHB4PTBJ


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 450kg
Load Capacity Per 4-Set (kg) 1350kg
Overall Height 143mm
Wheel Diameter 100mm
Tread Width 50mm
Castor Type Swivel
Fitting Method Plate
Hole Size 11mm
Plate Size 135mm x 110mm
Hole Centres 105mm x 80mm
Bearing Type Ball
Offset 33mm
Bracket Material Fabricated
Wheel Material Polyurethane on Cast Iron
Wheel Colour Orange
