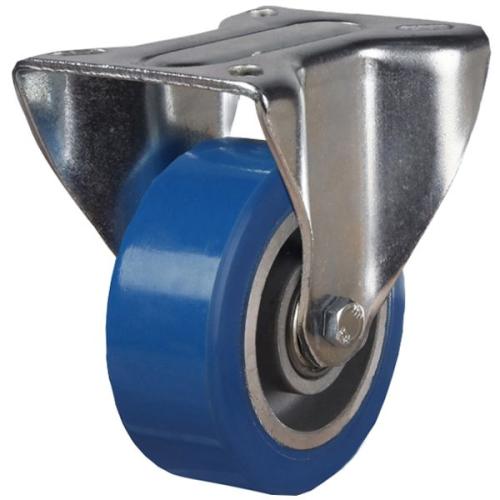

100mm Elastic Polyurethane Fixed Castor [300kg max load]


Code: 100DRH8EPABJ


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 300kg
Load Capacity Per 4-Set (kg) 900kg
Overall Height 128mm
Wheel Diameter 100mm
Tread Width 40mm
Castor Type Fixed
Fitting Method Plate
Hole Size 9mm
Plate Size 105mm x 85mm
Hole Centres 80mm x 60mm
Bearing Type Ball
Bracket Material Heavy Pressed Steel
Wheel Material Elastic Polyurethane on Aluminium
Wheel Colour Blue
